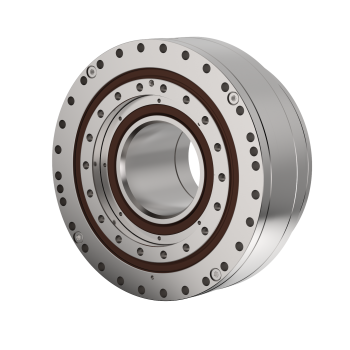

TwinSpin G Series high-precision cycloidal reduction gear with integrated radial-axial output bearing. Official specifications for size TS 075 list a 41:1 reduction ratio, 35 N·m rated output torque and 2,000 rpm rated input speed.
Specifications
| Reducer type | cycloidal |
|---|---|
| Reduction ratio | 41:1 |
| Rated output torque | 35 N·m |
| Maximum acceleration/deceleration torque | 70 N·m |
| Rated input speed | 2,000 rpm |
| Torsional stiffness (50–100% rated torque) | 8.2 N·m/arcmin |
| Allowable tilting moment | 174 N·m |
| Weight | 0.95 kg |
| Allowable radial force | 1.8 kN |
| Allowable axial force | 5.7 kN |
| Nominal life L10 | 6,000 h |
| Technical extension | Maximum acceleration/deceleration torque is the source table value T_acc; table values are measured means at nominal operating temperature. Designed for intermittent duty cycles S3–S8; continuous S1 operation should be confirmed with SPINEA. Source table identifies the product as TwinSpin G Series size TS 075. |
